Industrial Lighting
We are a prominent manufacturer and supplier of reliable range of Street lights, High Bay lights, Flood lights, IP 65 Emergency and
Non-Emergency lights, Handheld work light, Control cabinet light, Control Boxes, Solar AOL, Control Cabinet
Aviation Obstruction Light
We are a most trusted name which offer Aviation Obstruction Light L-810

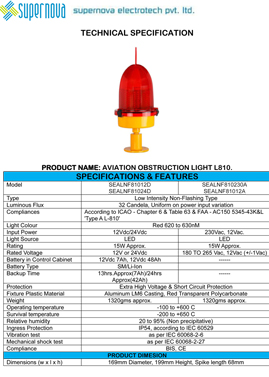

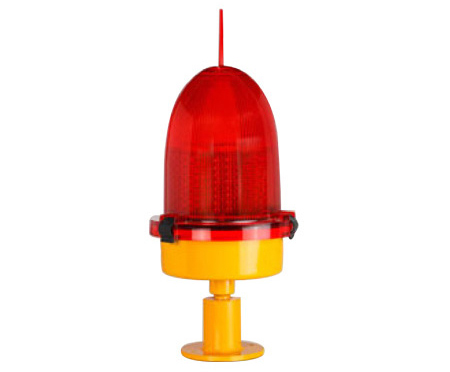

Aviation Obstruction Lights L-810
| Model | SEALNF81012D SEALNF81024D |
SEALNF810230A SEALNF81012A |
| Type | Low Intensity Non-Flashing Type | |
| Luminous Flux | 32 Candela, Uniform on power input variation | |
| Compliances | According to ICAO - Chapter 6 & Table 63 & FAA - AC150 5345-43K&L 'Type A L-810' | |
| Light Colour | Red 620 to 630nM | |
| Input Power | 2Vdc/24Vdc | 230Vac, 12Vac. |
| Light Source | LED | LED |
| Rating | 15W Approx. | 15W Approx. |
| Rated Voltage | 12V or 24Vdc | 180 TO 265 Vac, 12Vac (+/-1Vac) |
| Battery in Control Cabinet | 12Vdc 7Ah, 12Vdc 48Ah | - |
| Battery Type | SM/Li-Ion | |
| Backup Time | 13hrs.Approx(7Ah)/24hrs Approx(42Ah) | - |
| Protection | Extra High Voltage & Short Circuit Protection | |
| Fixture Plastic Material | Aluminum LM6 Casting, Red Transparent Polycarbonate | |
| Weight | 1320gms approx. | 1320gms approx. |
| Operating temperature | -10o to +60o C | |
| Survival temperature | -20o to +65o C | |
| Relative humidity | 20 to 95% (Non precipitative) | |
| Ingress Protection | IP54, according to IEC 60529 | |
| Vibration test | as per IEC 60068-2-6 | |
| Mechanical shock test | as per IEC 60068-2-27 | |
| Compliance | BIS, CE | |
| Dimensions (w x l x h) | 169mm Diameter, 199mm Height, Spike length 68mm | |
* Specification subject to change
